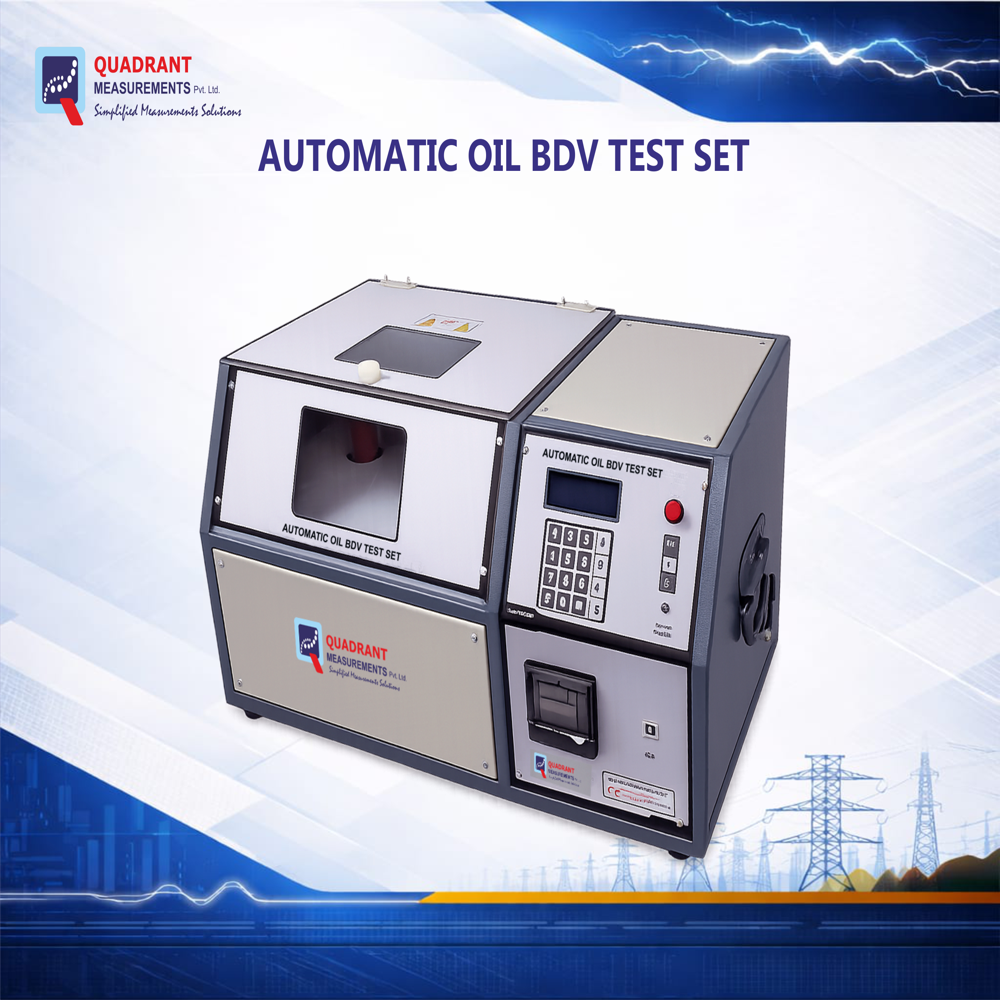

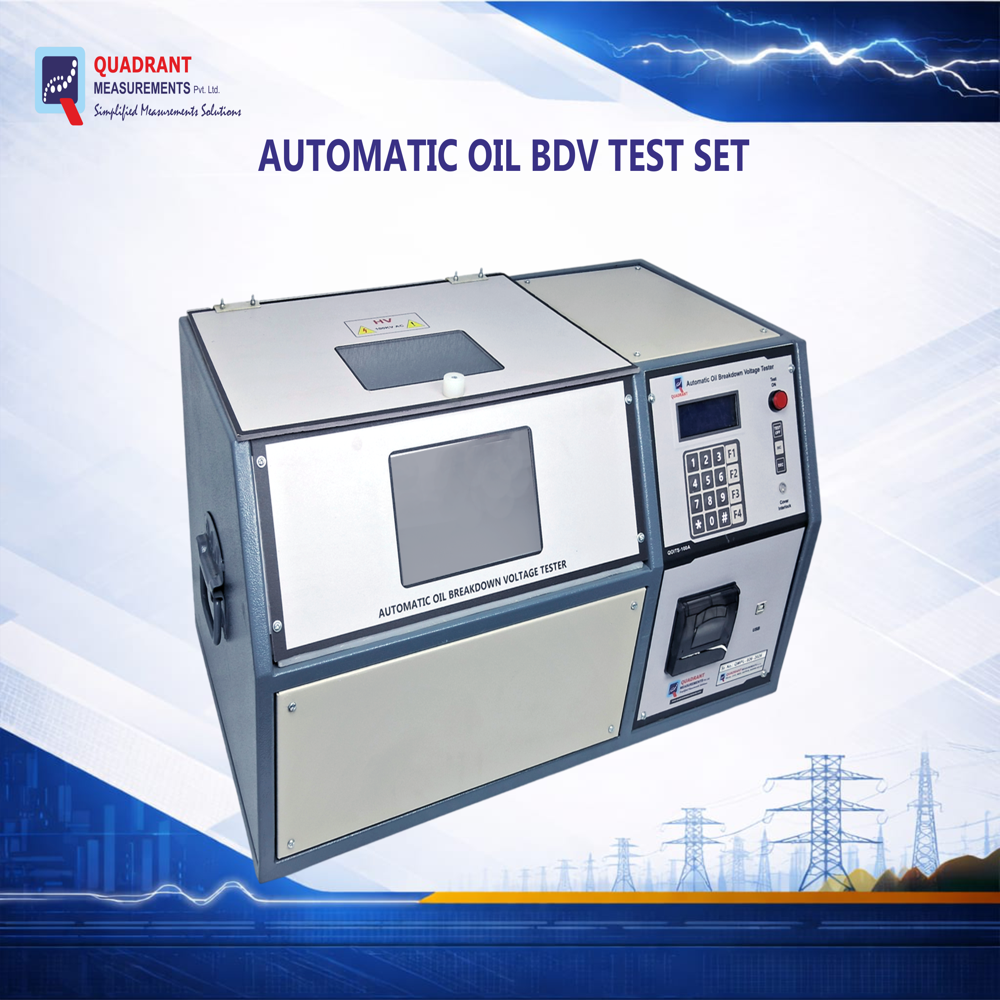

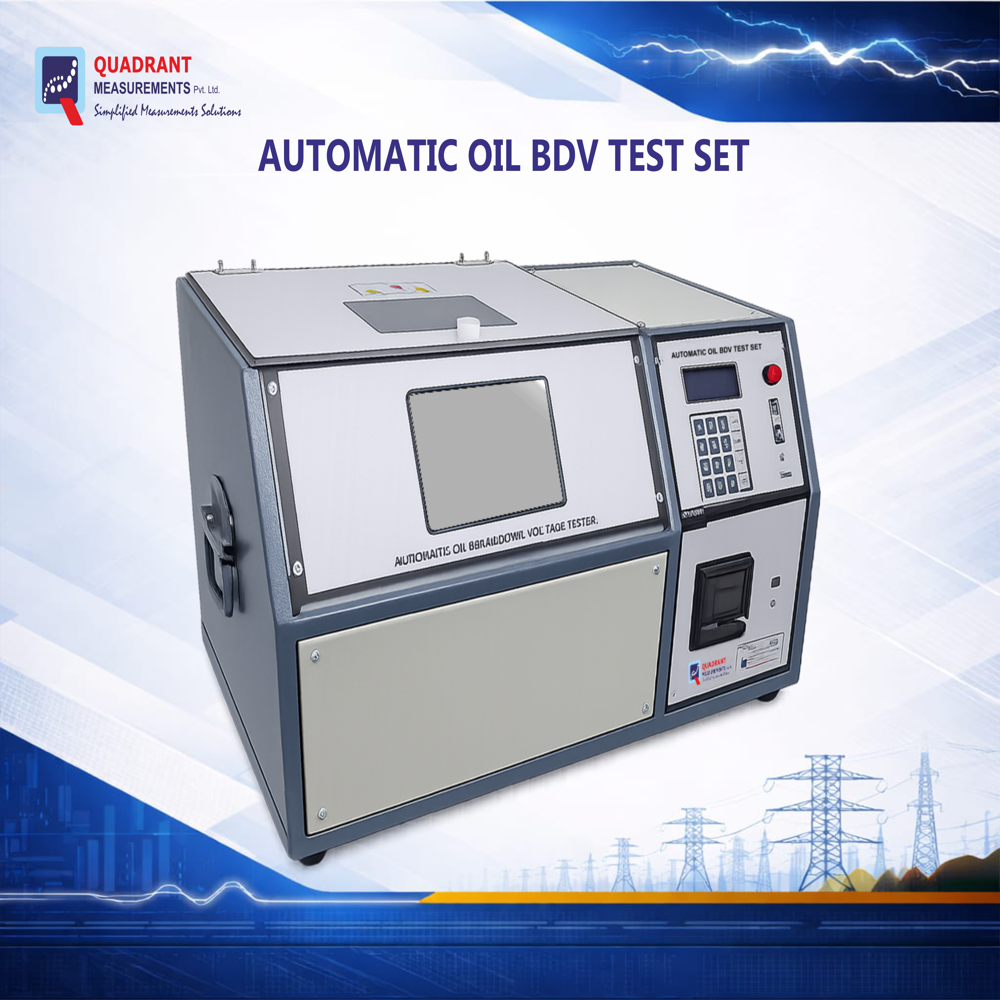

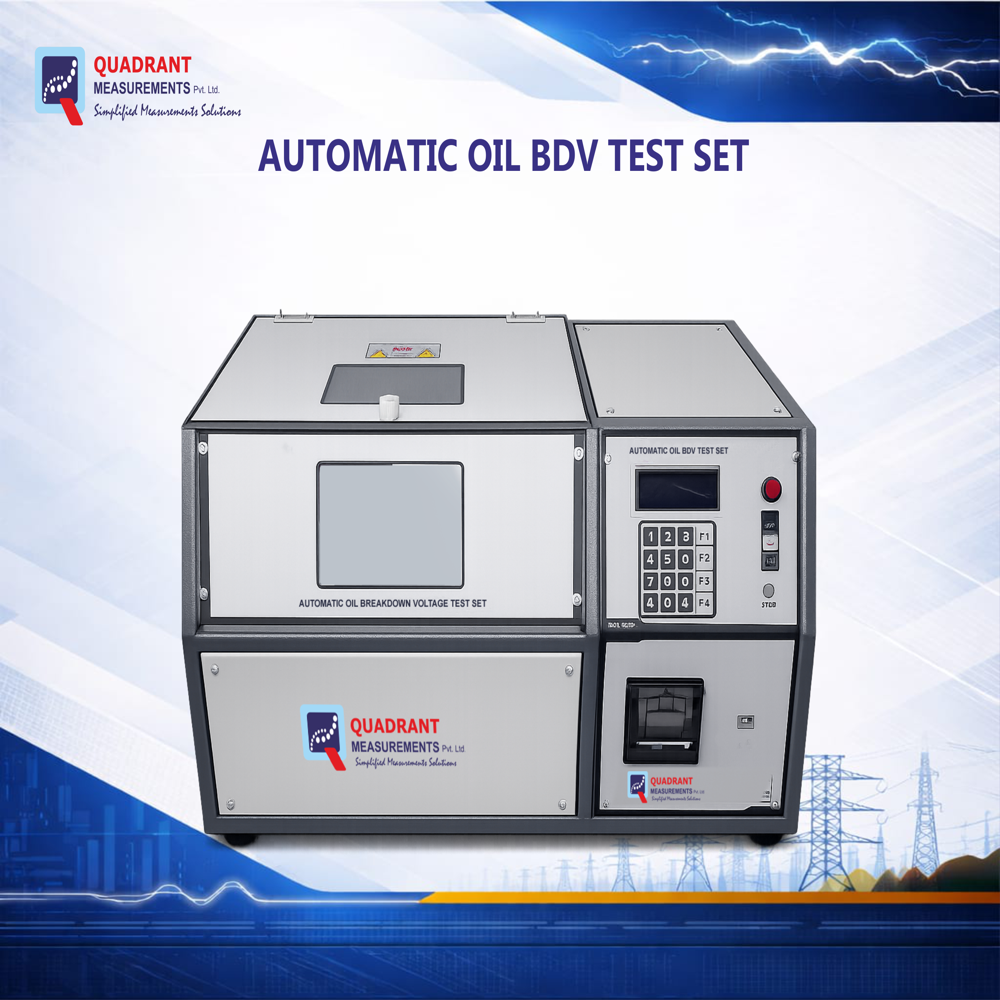

Automatic Oil Breakdown Voltage test set, Oil BDV Test Set ( QOITS-100A )

Send Inquiry

Request To Call Back

Automatic Oil Breakdown Voltage test set, Oil BDV Test Set ( QOITS-100A )

Get a Price/Quote

MOQ : 1 Unit

Automatic Oil Breakdown Voltage test set, Oil BDV Test Set ( QOITS-100A ) Specification

Pressure
Atmospheric

Resistant Feature
Oil spill, electrical overload, and corrosion resistant design

Accuracy
1.5% of reading

Batteries Type
Mains operated, no battery required

Usage & Applications
Testing dielectric breakdown voltage of transformer/insulating oil

Product Type
Automatic Oil Breakdown Voltage Test Set (Oil BDV Test Set)

Material
Powder coated metal enclosure, Transparent acrylic test chamber window

Measuring Voltage Range
0 - 100 kV AC

Operating Temperature
0C to 50C

Frequency (MHz)
50 Hz / 60 Hz selectable

Insulation Box
Provided for safe test environment

Protection System
Automatic cut-off on breakdown, Overload and short-circuit protection

Size
Portable, bench-top model

Color
Grey and Metallic Silver

Rated Voltage
100KV Volt (V)

Dimension (L*W*H)
Approx. 500 x 380 x 350 mm

Weight
Approx. 28 kg

Control Panel
Microprocessor based, digital display with keypad input

Test Cup Type
IEC 156 compliant, 400 ml capacity

Stirring Mechanism
Automatic magnetic stirrer for uniform sample mixing

Power Supply
230V AC, 50 Hz / 110V AC, 60 Hz (optional configuration)

Display Type
Large alphanumeric LCD display

Data Output
Inbuilt thermal printer for result printout, optional RS232/USB interface

Pre-set/Programmable Standards
IS, IEC, ASTM, VDE, user configurable

Cooling System
Passive air vents

Electrode Material
Stainless steel, standard mushroom-type

Electrode Gap Adjustment
1 mm, 2 mm, adjustable as per IS/IEC standards

Safety Interlocks
Chamber lid interlock and emergency stop

Memory Storage
Up to 100 test results

Automatic Oil Breakdown Voltage test set, Oil BDV Test Set ( QOITS-100A ) About

Test voltage	0 to 100 kV
Phase type	Single phase
Operation mode	Automatic
Voltage rise rate	Custom as per test standard
Usage/Application	Industrial / Lab / Field / Oil testing and filtration /
Max capacity	100 kV
Brand	Quadrant Measurements Private Limited
Electrode type	Mushroom
Standards	ASTM D1816, ASTM D877, IS 6792, IEC 60156
Display type	LCD
Input Voltage	230 V
Country of Origin	Made in India
Phase	Single Phase
Additional electrodes	Spherical , Flat

We are a leading manufacturer, supplier, trader, and exporter of Automatic OIL Breakdown Test Kit, designed precisily for testing dielectric strength and breakdown voltage (BDV) of insulating oils.

Fully automatic with preloaded 16 test standards, safety interlocks, printer, data save and pc download this is a one stop solution for assess the insulation quality of transformer oil and ensure optimal equipment performance.

Our OIL BDV is widely used by Testing Laboratories, Oil Testing Service Providers, and Electrical Maintenance Companies.

Application:

Power Transformers
Distribution Transformers
Current Transformer
Bushing
Power Capacitors

Features:

Compact and lightweight
Auto operation mode
Fully automatic operation, Withstand test
Fully compatible with IEC 60156, ASTM D etc
Pre-loaded testing programs for 16 standards
3 Custom Program Settings
Built-in printer
PC connectivity
100 Internal test data storage
Precise voltage measurement
True sine high-voltage on electrodes
Indicator HT ON/OFF, All safety Interlock
incorporated, Zero Start, HT Chamber interlock

Technical Specifications:

Output Voltage: 0-100KV AC
Accuracy: 2% of FSD 2 digit
Resolution: 0.1KV
Display: 20 X 4 Backlite LCD
Tripping Time: less than 1 milliseconds
Power Supply: 230VAC, 50Hz, Single Phase
Controls: HT ON, HT OFF, Increase, Deacrese
Printer: Thermal printer

SCOPE OF SUPPLYOil BDV- Oil Test Cell with electrodes- Go-No-Go gauge- Mains cord- User / Instruction manual- Lifting Stick
- Software CD for Data Download

TEST VESSEL
- Made of Methyl Mathacrylate (Acrylic)- Volume 300/400ml approx- Mushroom electrodes as per IS:6792, IEC 156 and 3 Custom Modes.- Made of Methyl Mathacrylate (Acrylic)- Volume 300/400ml approx- Mushroom electrodes as per IS:6792, IEC 156 and 3 Custom Modes.- Made of Methyl Mathacrylate (Acrylic)- Volume 300/400ml approx- Mushroom electrodes as per IS:6792, IEC 156 and 3 Custom Modes.- Made of Methyl Mathacrylate (Acrylic)- Volume 300/400ml approx- Mushroom electrodes as per IS:6792, IEC 156 and 3 Custom Modes.

Intuitive Digital Control and Data Handling

The QOITS-100A features a user-friendly, microprocessor-based control panel with keypad input and a spacious LCD display for easy setting adjustments and live test monitoring. Integrated data management includes memory storage for up to 100 results and built-in thermal printing for on-the-spot documentation. The optional RS232/USB interface offers added flexibility for digital data transfer.

Optimized Test Cup and Electrode Design

Equipped with a 400 ml IEC 156-compliant test cup and standard stainless steel mushroom-type electrodes, the unit offers precise electrode gap settings (1 mm, 2 mm, or customizable per IS/IEC norms) for repeatable, reliable measurements. Its transparent acrylic window allows safe sample observation while maintaining a controlled environment.

Enhanced Safety and Durability

Safety is paramount, with features including chamber lid interlocks, emergency stop, and automatic cut-off upon oil breakdown. The powder-coated metal chassis is built for resilience, offering protection from oil spills, electrical overloads, and corrosion. Portable yet robust, the bench-top model is suitable for rigorous lab or field use.

FAQ's of Automatic Oil Breakdown Voltage test set, Oil BDV Test Set ( QOITS-100A ):

Q: How do I use the QOITS-100A Oil Breakdown Voltage Test Set for transformer oil testing?

A: To use the QOITS-100A, pour the oil sample into the 400 ml IEC 156-compliant test cup and set the electrode gap as required (1 mm, 2 mm, or per standards). Configure testing parameters using the digital keypad, select the desired test standard, and initiate the test. The automatic stirrer will mix the sample, and the device will automatically apply voltage until breakdown occurs. Results are displayed on the LCD and can be printed or exported.

Q: What standards does this Oil BDV Test Set support, and can I program custom test parameters?

A: The QOITS-100A supports IS, IEC, ASTM, and VDE preset test protocols. Additionally, it allows user-configurable test standards, letting you program custom voltage ramp rates and hold times as required by specific testing procedures.

Q: When should I use the QOITS-100A for oil dielectric strength measurement?

A: Utilize the QOITS-100A for routine maintenance checks, quality assessment, and diagnostics of transformer or insulating oils. Regular testing helps prevent electrical failure by ensuring the dielectric strength is within safe operational limits.

Q: Where is this test set commonly deployed, and what applications does it serve?

A: This test set is widely used in electrical utilities, transformer manufacturing plants, industrial laboratories, and service centers. It is ideal for testing the electrical breakdown voltage of transformer and insulating oils to assess their quality and suitability for use in electrical apparatus.

Q: What safety features are integrated in the QOITS-100A?

A: The unit incorporates multiple safety interlocks including a chamber lid safety, emergency stop button, automatic voltage cut-off on breakdown, as well as overload and short-circuit protection. These ensure user safety during operation and protect the device from damage.

Q: How are test results stored and retrieved from the QOITS-100A?

A: Test results are digitally stored in the system memory, with a capacity for up to 100 records. Results can be reviewed on the LCD, printed instantly via the inbuilt thermal printer, or exported through the optional RS232/USB interface for further analysis or archiving.
