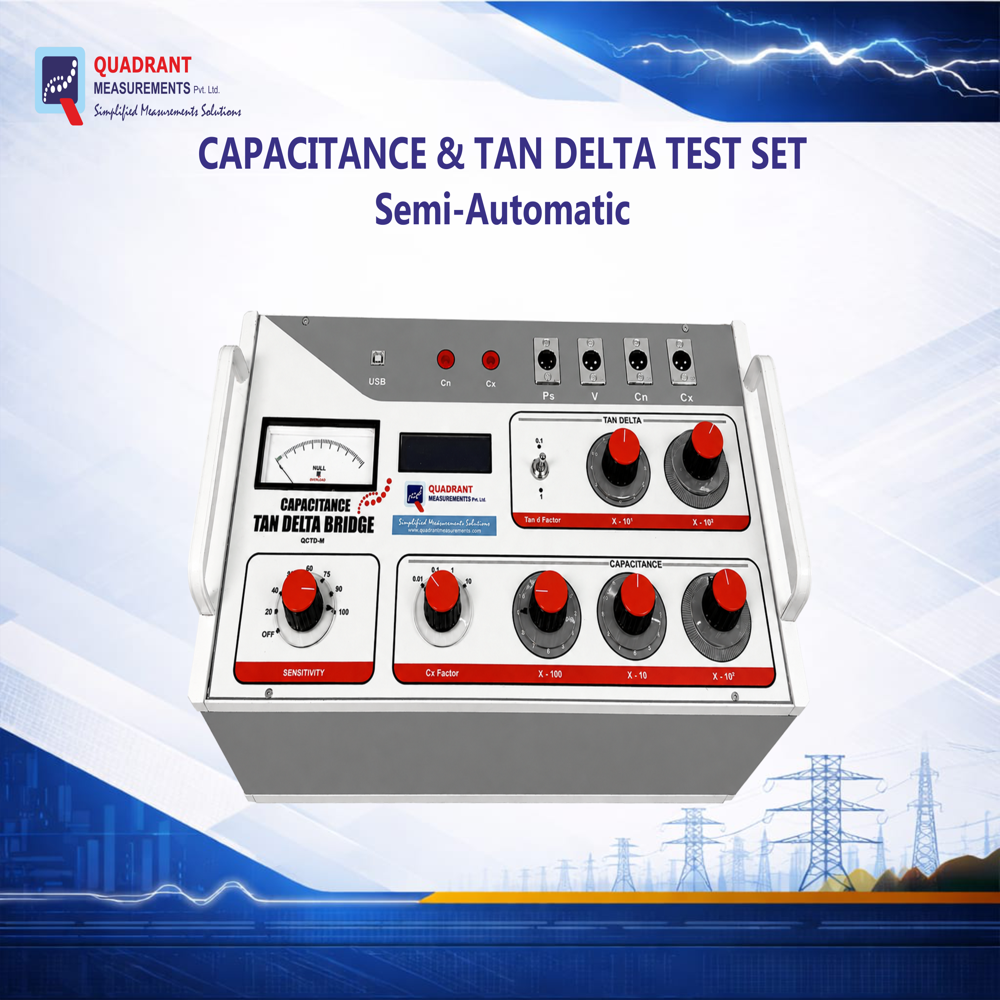

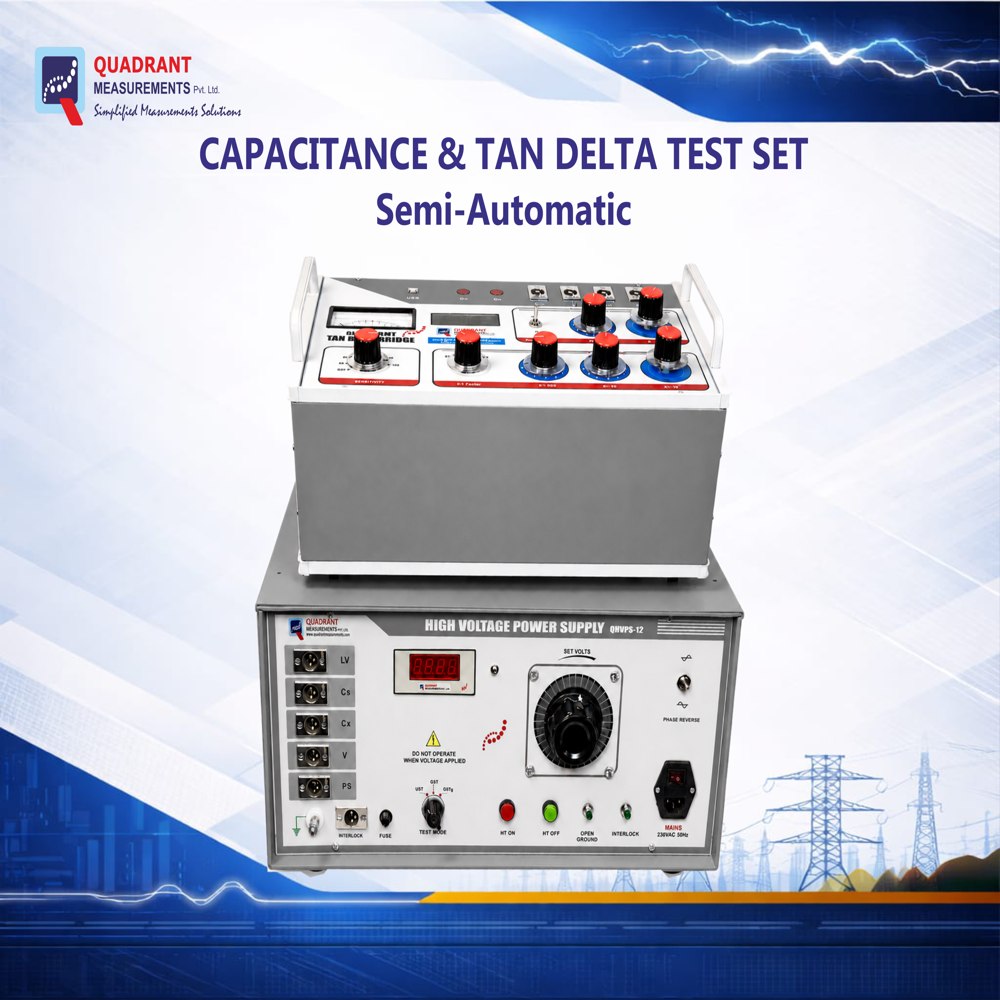

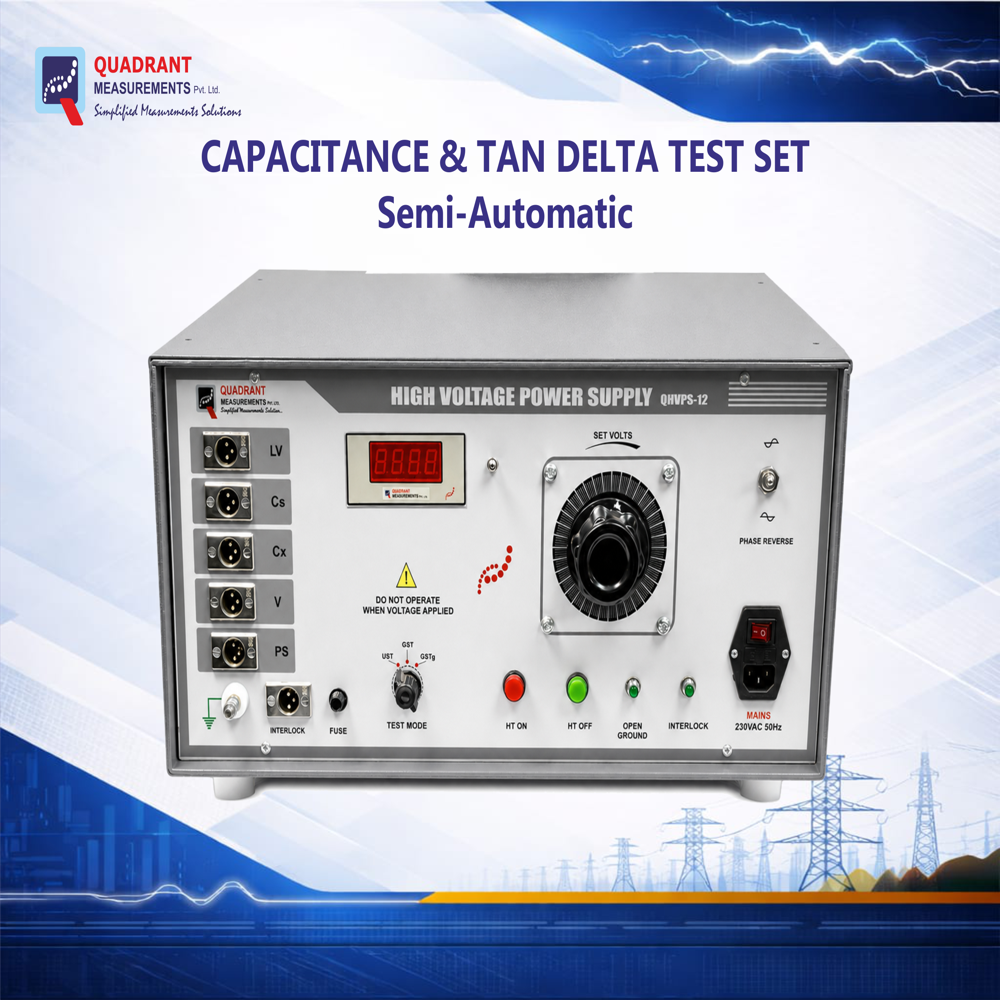

Semi Automatic Capacitance And Tan Delta Test Set. ( QCTDM )

Send Inquiry

Request To Call Back

Semi Automatic Capacitance And Tan Delta Test Set. ( QCTDM )

Get a Price/Quote

MOQ : 1 Number

Semi Automatic Capacitance And Tan Delta Test Set. ( QCTDM ) Specification

Batteries Type
Mains Powered (No Batteries)

Accuracy
0.1% of reading %

Usage & Applications
Measurement of tan delta & capacitance for insulation diagnosis in transformers, cables, and bushings

Resistant Feature
Corrosion Resistant Casing

Pressure
Atmospheric PSI

Product Type
Tan Delta Bridge

Material
Powder Coated Metal Enclosure

Measuring Voltage Range
Up to 12 kV kilovolt (kV)

Operating Temperature
0C to 50C Celsius (oC)

Frequency (MHz)
50/60 Hz (Test Frequency) Hertz (HZ)

Insulation Box
Included

Protection System
Overcurrent and Short-circuit protection

Size
Standard Lab Equipment Size

Warranty
1

Color
White and Blue

Rated Voltage
12KV Volt (V)

Dimension (L*W*H)
Approx. 450 350 250 mm Centimeter (cm)

Weight
30 Kilograms (kg)

Calibration
Auto & Manual Calibration options

Humidity Operating Range
Up to 90% RH

Data Storage
PC Interface with data logging and report generation

Environmental Protection
IP20

Accessories Included
Test Leads, Earthing Rod, Operating Manual

Output Power
500 VA (max)

Test Capacity Range
10 pF to 1 F

Input Voltage
110-230 V AC, 50/60 Hz

Display Type
Digital LCD Display (interface with PC/laptop)

Semi Automatic Capacitance And Tan Delta Test Set. ( QCTDM ) Trade Information

Minimum Order Quantity
1 Number

Payment Terms
Cash in Advance (CID)

Supply Ability
10 Per Month

Delivery Time
7 Days

Main Domestic Market
All India

Semi Automatic Capacitance And Tan Delta Test Set. ( QCTDM ) About

Test material	Solid insulator, Bushings, power systems, motor , power cable, HT Transformer, Power capacitor , Generators, Rubber, Cable insulator
Voltage range	0-12 kV
Frequency Range	50 Hz
Measurement mode	Bridge+PF, Capacitance, Bridge
Accuracy	0.1%
Model Name/Number	Automatic Capacitance and Tan Delta Test Set
Data storage	PC software
Brand	Quadrant Measurements Private Limited
Country of Origin	Made in India
Delivery	PAN India
Mfg by	Quadrant Measurements Private Limited

The Spotlight-acclaimed Tan Delta Bridge impresses with its state-of-the-art Digital LCD Display, offering unmatched precision for transformer, cable, and bushing insulation diagnosis. Experience incomparably accurate measurements with a test capacity range from 10 pF to 1 F and a crowning 0.5% accuracy. This corrosion-resistant beauty operates under up to 90% humidity, storing reports directly to your PC, all at the best price. Its matchless auto/manual calibration, overcurrent protection, and robust powder-coated enclosure ensure reliability in every laboratory setting.

Versatile Application: From Power Plants to Labs

The Tan Delta Bridge finds widespread application in electrical test labs, power plants, transformer maintenance facilities, and manufacturing industries. Frequently employed by electrical engineers, quality assurance technicians, and field service teams, it plays a vital role in assessing insulation health. Used primarily for measuring tan delta and capacitance, this device supports routine diagnostics and preventive maintenance of transformers, cables, and bushings across various sectors, ensuring the safety and reliability of critical electrical infrastructure.

Efficient Delivery, Clear Payment Terms, and Ample Supply

Customers can expect prompt delivery of goods via reliable freight and goods transport methods, minimizing expenditure during logistics. Our delivery timeline generally ranges from 1 to 2 weeks, reflecting our extensive supply ability and efficient dispatch network across India. The supplier supports flexible payment terms, ensuring a convenient purchasing experience for every client. Every customer benefits from tracked consignments and proactive updates to guarantee the secure arrival of your Tan Delta Bridge.

FAQ's of Tan Delta Bridge:

Q: How does the Tan Delta Bridge interface with a PC or laptop?

A: The unit features a digital LCD display and a dedicated PC/laptop interface, enabling direct data logging, storage, and seamless report generation, enhancing efficiency for users.

Q: What is the process for calibrating the Tan Delta Bridge?

A: Calibration can be performed either automatically or manually, allowing users to select the most suitable option for their testing environment and ensuring consistently accurate results.

Q: Where is the Tan Delta Bridge most commonly used?

A: This instrument is commonly utilized in electrical laboratory environments, power plants, and field service operations, particularly for transformer, cable, and bushing insulation diagnostics.

Q: What are the benefits of using the Tan Delta Bridge for insulation diagnosis?

A: It provides precise, real-time measurement of tan delta and capacitance, helping identify insulation deterioration early, which extends equipment life and reduces unplanned downtime.

Q: When should I opt for the Tan Delta Bridge's overcurrent and short-circuit protection?

A: These protection systems are always active, automatically safeguarding the instrument in the event of electrical abnormalities, thus protecting both the device and the test subject during operation.
