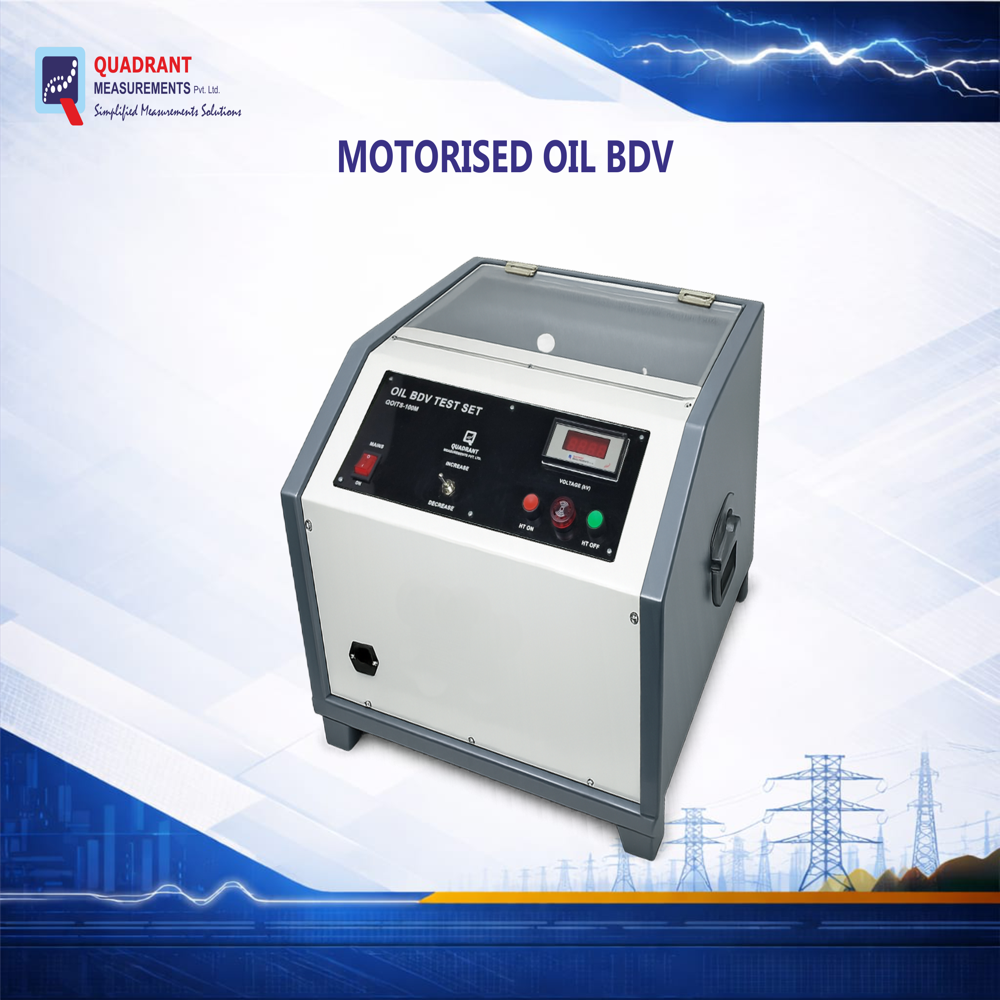

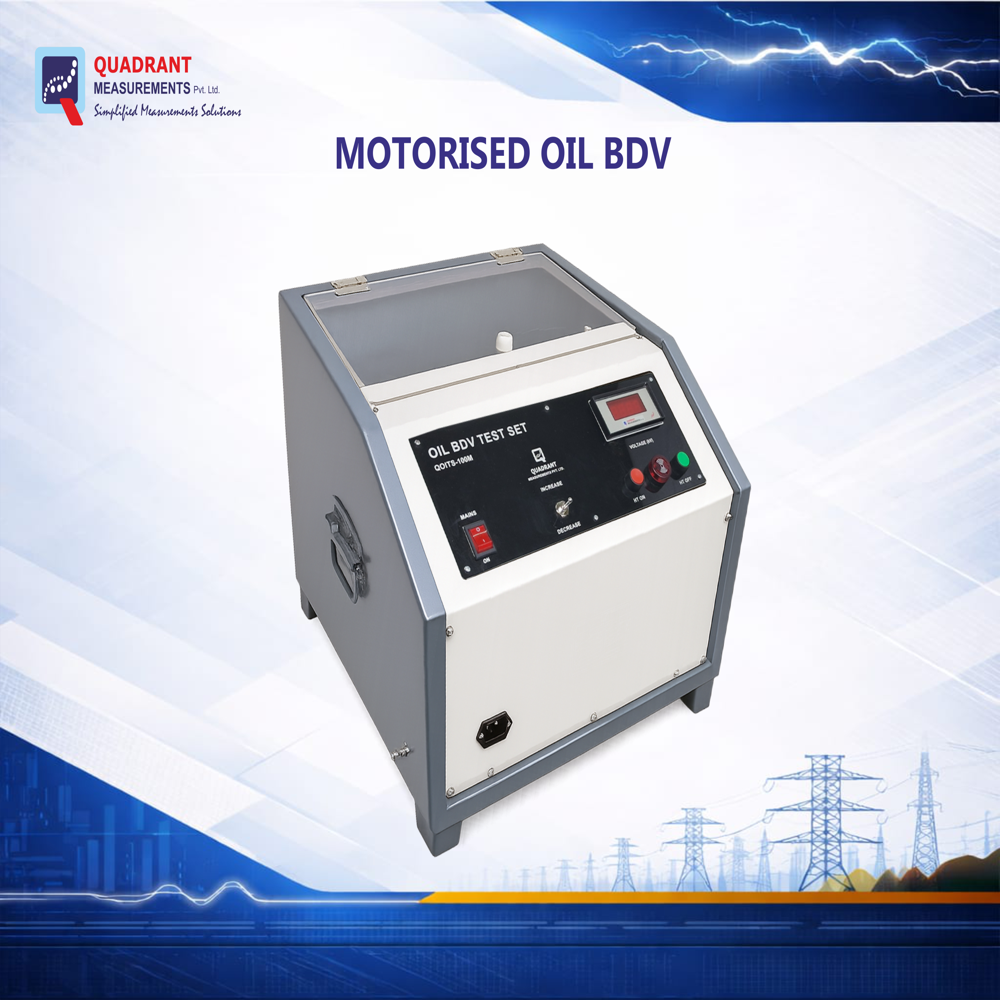

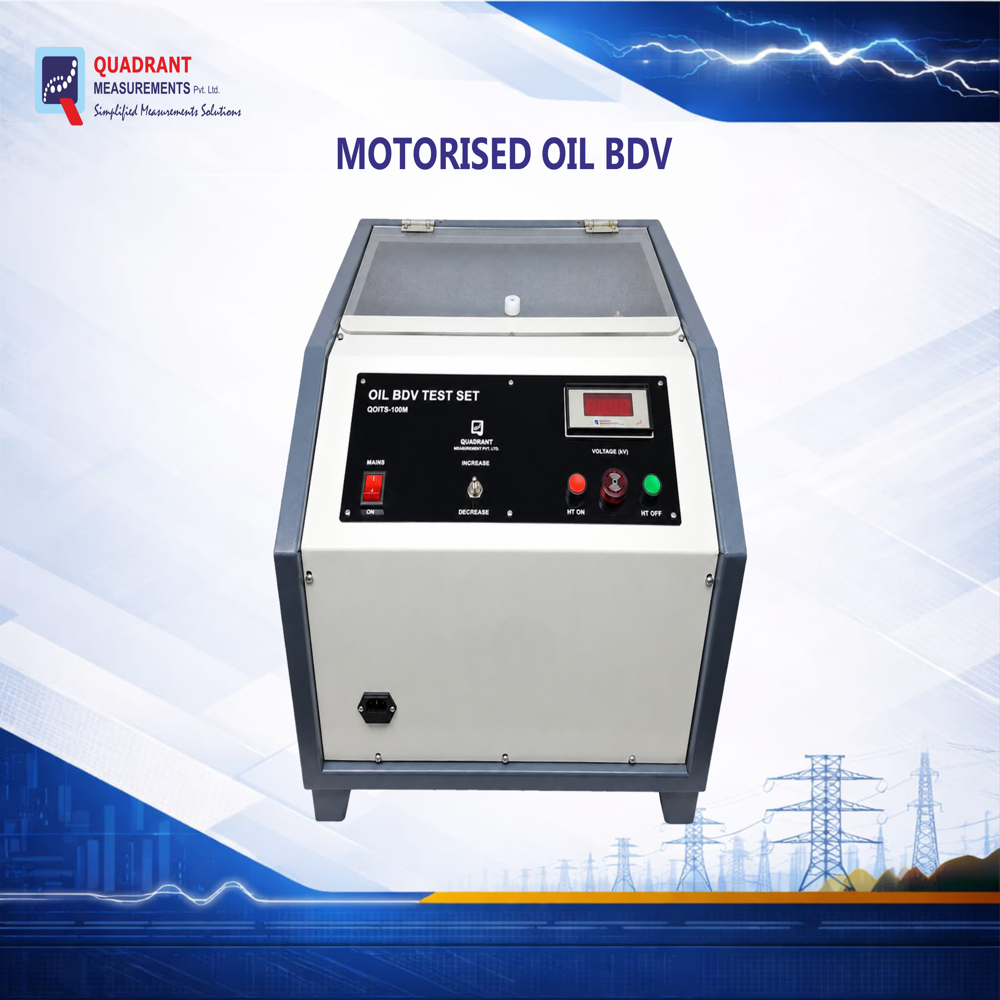

Send InquiryTransformer Oil Breakdown Test Set, OIL BDV ( QOITS-100M ) - Manual Motorized operation
Price 1.0 INR/ Number
MOQ : 1 Number
Transformer Oil Breakdown Test Set, OIL BDV ( QOITS-100M ) - Manual Motorized operation Specification
- Warranty
- 1
- Usage & Applications
- Transformer Oil Testing. Power transformer Distribution Transformers Current Transformer Bushing Power Capacitors Power Generation Plants. Industrial Electrical Equipment Testing
- Rated Voltage
- 100KV Volt (V)
About Transformer Oil Breakdown Test Set, OIL BDV ( QOITS-100M ) - Manual Motorized operation
| Test type | BDV |
| Test voltage | 0 to 100 kV |
| Phase type | Single phase |
| Operation mode | Manual |
| Usage/Application | Industrial |
| Voltage rise rate | 2 kV per s |
| Max capacity | 100 kV |
| Cup volume | 300 ml |
| Brand | Quadrant Measurements Private Limited |
| Electrode type | Mushroom |
| Standards | IS 6792, IEC 60156 |
| Usage type | Field, Lab, Test lab, OEM lab |
| Display type | LCD |
| Input Voltage | 230 VAC |
| Power Supply | AC |
| Phase | Single Phase |
We are a leading supplier and manufacturer of Motorised Oil Breakdown Voltage Testers (BDV Test Kits) designed for accurate testing of the dielectric strength of transformer insulating oil. This robust Transformer Oil BDV Tester is widely used in electrical substations, power plants, transformer manufacturing units, testing laboratories, and maintenance departments for evaluating the quality and insulation properties of transformer oil.
Featuers :
Application:
Technical Specifications:
Featuers :
- Rate of rise of voltage 2KV/s
- Suitable for ICE-156, IS: 6792 standards.
- KV meter continues to indicate breakdown voltage even after breakdown.
- Test voltage can be held at any desired level for withstanding test.
Application:
- Transformer Oil Testing.
- Power transformer
- Distribution Transformers
- Current Transformer
- Bushing
- Power Capacitors
- Power Generation Plants.
- Industrial Electrical Equipment Testing
Technical Specifications:
- Manual / Motorised Operation
- Output Voltage: 0-60 / 80 /100KV AC
- Accuracy: 2% of reading 1 digit
- Resolution: 0.1KV
- Display: Digital meter
- Rate of Rise of Voltage: 2KV/s
- Power Supply: 230VAC, 50Hz, Single Phase
- Controls: HT ON, Increase, Deacrese
- Protections: Interlock for HV Chamber Over load / Over voltage protection.
