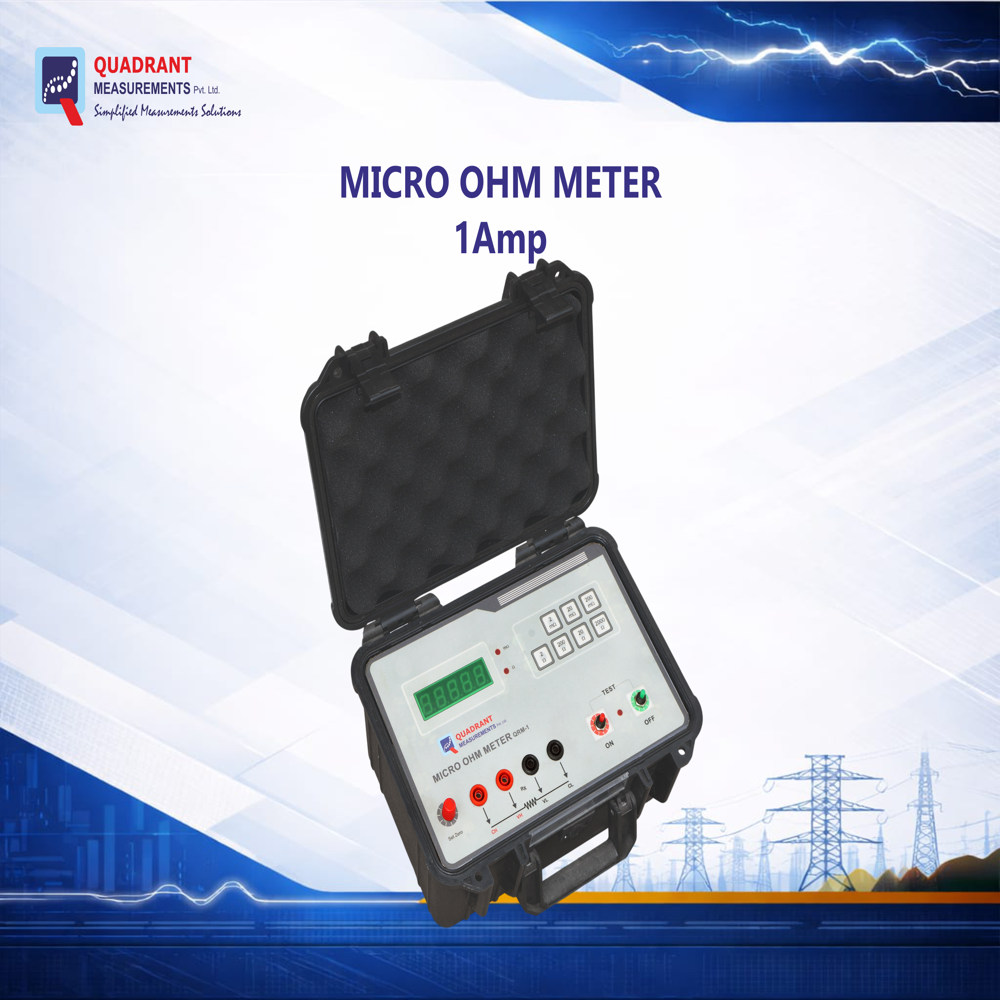

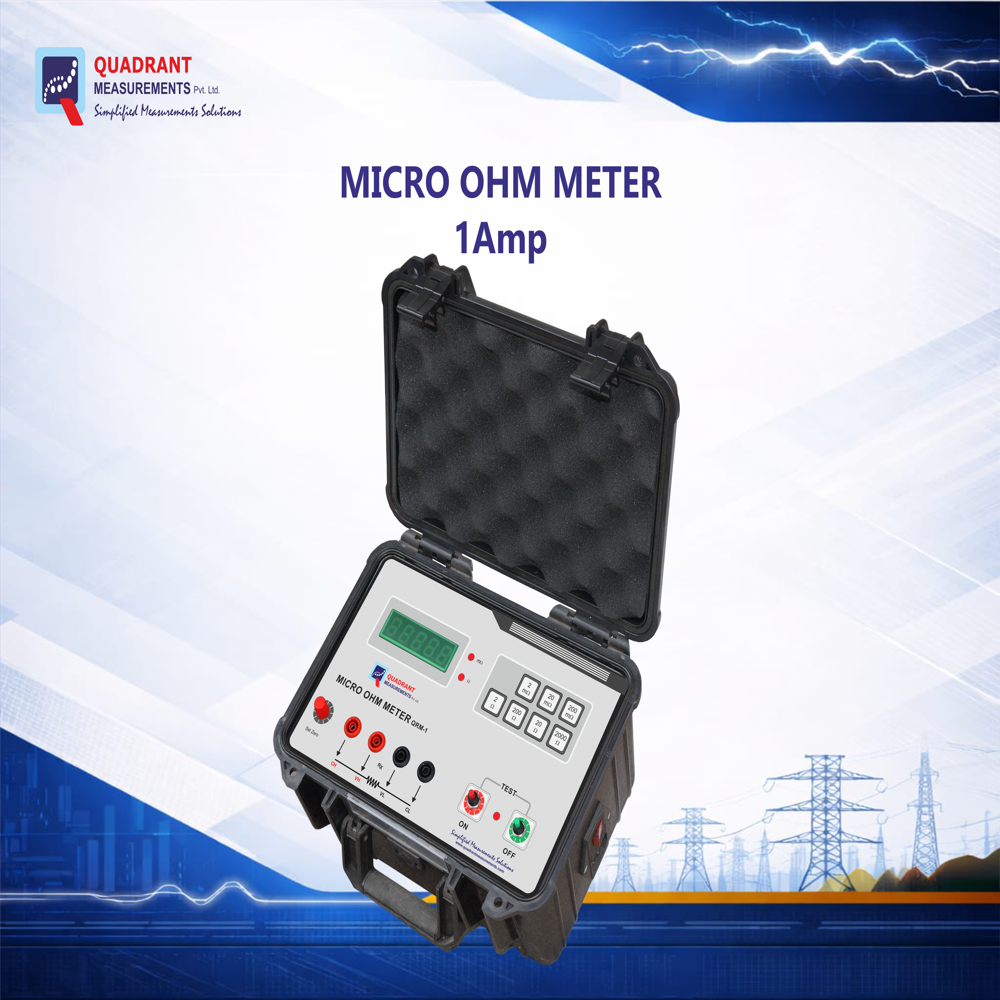

Micro Ohm Meter 1 Amp ( QRM-1 )

Get a Price/Quote

MOQ : 1 Number

Micro Ohm Meter 1 Amp ( QRM-1 ) Specification

Storage Temperature
-10C to 60C Celsius (oC)

Current Range
Up to 1A testing current Ampere (A)

Temperature Range
0C to 50C Celsius (oC)

Mounting
Benchtop

Response Time
<2 seconds Seconds

Application Media
Motor Winding, Breaker Contact, Transformer Winding, Busbar Testing, Welding Joint, Rail Bond Test

Input
Test Probes

Dimension (L*W*H)
305 x 250 x 120 mm Centimeter (cm)

Connectivity Type
None/Optional USB

Process Connection
Banana Plug Terminals

Color
Blue/White

Operating Temperature
0C to 50C Celsius (oC)

Output
Digital

Measurement Range
0.01 m to 2 k

Measuring Units
Ohms ()

Connecting Type
4-wire (Kelvin) method

Frequency
50 Hz AC Hertz (HZ)

Resolution
0.01 m

Protection
Protection against back EMF for high inductive loads

Usage
Motor Winding, Breaker Contact, Transformer Winding, Busbar Testing, Welding Joint, Rail Bond Test

Material
Metal Enclosure

Power Supply
230V AC, 50 Hz

Power Consumption
NA Watt (W)

Accuracy
0.5% of reading %

Display Type
Digital Only

Range
0.01 m to 20 k

Weight
Approx. 3 kg

Data Hold Function
Yes

Interface
Simple keypad operated

Equipment Type
Resistance Meter

Calibration
Manual/Auto

Compliance
CE Certified

Accessories Included
Test Leads, User Manual, Power Cord

Test Voltage
5V DC

Standby Power Mode
Yes

Micro Ohm Meter 1 Amp ( QRM-1 ) Trade Information

Minimum Order Quantity
1 Number

Payment Terms
Cash in Advance (CID)

Supply Ability
10 Per Month

Delivery Time
7 Days

Main Domestic Market
All India

Micro Ohm Meter 1 Amp ( QRM-1 ) About

Resistance Range	0.1 To 19999
Test Current	1 A
Display Type	Digital
Application	Motor Winding, Breaker Contact, Transformer Winding, Busbar Testing, Welding Joint, Rail Bond Test
Measurement Mode	4 Wire
Power Source	Mains
Accuracy	0.5 %
Interface	None
Data Logging	No
Brand	Quadrant Measurements Private Limited
Country of Origin	Made in India
Delivery	PAN India
Mfg by	Quadrant Measurements Private Limited

A micro-ohm meter is used to measure extremely low electrical resistance, typically in the range of micro-ohms (1 millionth of an ohm).

Features:-

- True Four Terminal Measuring technique eliminates lead resistance natural errors in 2 wire measurments.
- Regulated and Highly stable 1 Amp Current Source.
- 4 Digital LED Display.
- 0.1uOhm resolution on 2mOhm range.
- Stable and fast measurement.
- Protection against back EMF for high inductive loads.

This is useful in various applications, including: General Applications:

- Measuring the resistance of wires, cables, and conductors :Micro-ohm meters help determine the resistance of wires, cables, and other conductors, ensuring they meet required standards.
- Testing contact resistance of low-voltage switches and connectors :They ensure that connections are reliable by measuring contact resistance, which affects signal integrity.
- Measuring resistance of coils, motors, and transformer windings :They help diagnose issues in electrical equipment by measuring the resistance of coils and windings.
- Measuring low resistance of circuit boards and other components :They ensure the quality and functionality of electronic components by measuring their low resistance.
- Measuring bonding resistance :They ensure the integrity of bonding joints in structures, aircraft, and other applications.

Technical Specification:

- Range: 0.1 uOhm - 1999.9 Ohm.
- Accuracy: 0.05% of reading 5 Digit.
- Display: 4 Digit LED Display.
- Power Supply: 230V AC, 50Hz, 1 Phase.

Experience the opulent performance of our best-selling Resistance Meter, now available at clearance prices for a limited time. Engineered with a robust metal enclosure in an elegant blue/white finish, this towering instrument delivers ultimate accuracy (0.5% of reading) and rapid response (<2 seconds). Effortlessly navigate its simple keypad interface, digital LCD, and auto/manual calibration. The instrument includes essential accessories-test leads, user manual, power cord-for seamless operation. CE certified and equipped with standby mode, it's tailored for precise electrical resistance testing. Don't miss this unbeatable offer-order while stock lasts!

Advanced Features & Application Versatility

Our Resistance Meter offers overload and short circuit protection, ensuring safe operation every time. With a wide measurement range from 0.01 m to 2 k and 4-wire (Kelvin) method connectivity, it suits research labs, manufacturing quality control, and electrical maintenance. Its standby power mode guarantees energy efficiency, while the rugged metal body withstands demanding environments. This benchtop instrument excels on both smooth and textured surfaces, making it ideal for diverse electrical resistance testing needs.

Sample, Packaging and Order Processing Details

Samples of the Resistance Meter can be made available upon request to facilitate your evaluation before placing bulk orders. Each unit is expertly packaged to ensure safe transit and protection. We supply from India's major FOB ports for convenient shipping options. Quotations are provided promptly, and our streamlined order processing ensures fast order completion, minimizing your lead time. Trust our efficient logistics to deliver your equipment securely and on schedule.

FAQ's of Resistance Meters:

Q: How does the Resistance Meter ensure measurement accuracy?

A: The meter uses a 4-wire (Kelvin) method and offers an accuracy of 0.5% of reading, ensuring precise resistance measurements across its range.

Q: What types of surfaces or applications is this Resistance Meter suitable for?

A: It can be used on a variety of surfaces, including both smooth and textured materials, due to its benchtop design and robust build, making it ideal for labs, manufacturing, and electrical maintenance.

Q: What is the process for placing an order and obtaining a quotation?

A: You can request a quotation by contacting our sales team. Once you approve the quote, order processing and order completion follow promptly, ensuring quick delivery.

Q: When should I use the data hold function on the Resistance Meter?

A: The data hold function is especially useful when you want to freeze the current measurement on the display, allowing you to record and analyze the result without rushing.

Q: What protection features are included in the Resistance Meter?

A: The device is equipped with overload and short circuit protection, which helps to safeguard both the meter itself and the equipment being tested during operation.
