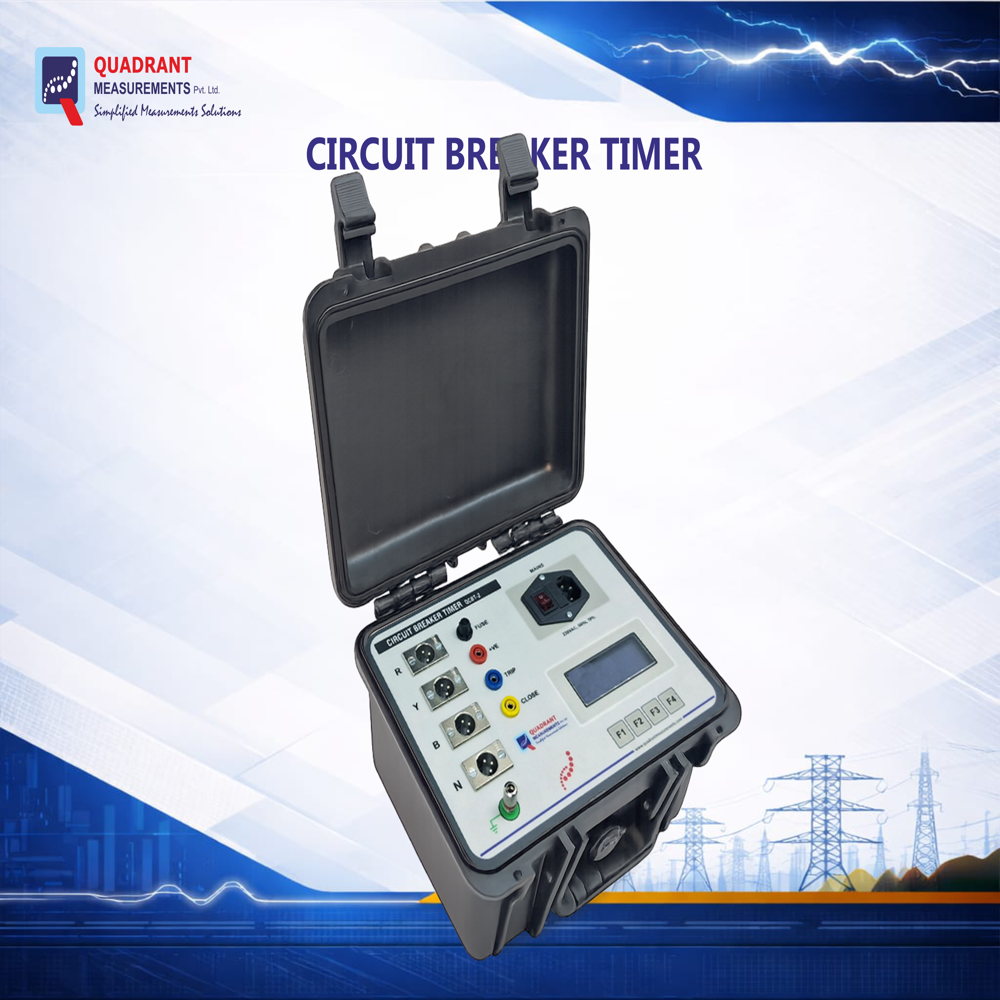

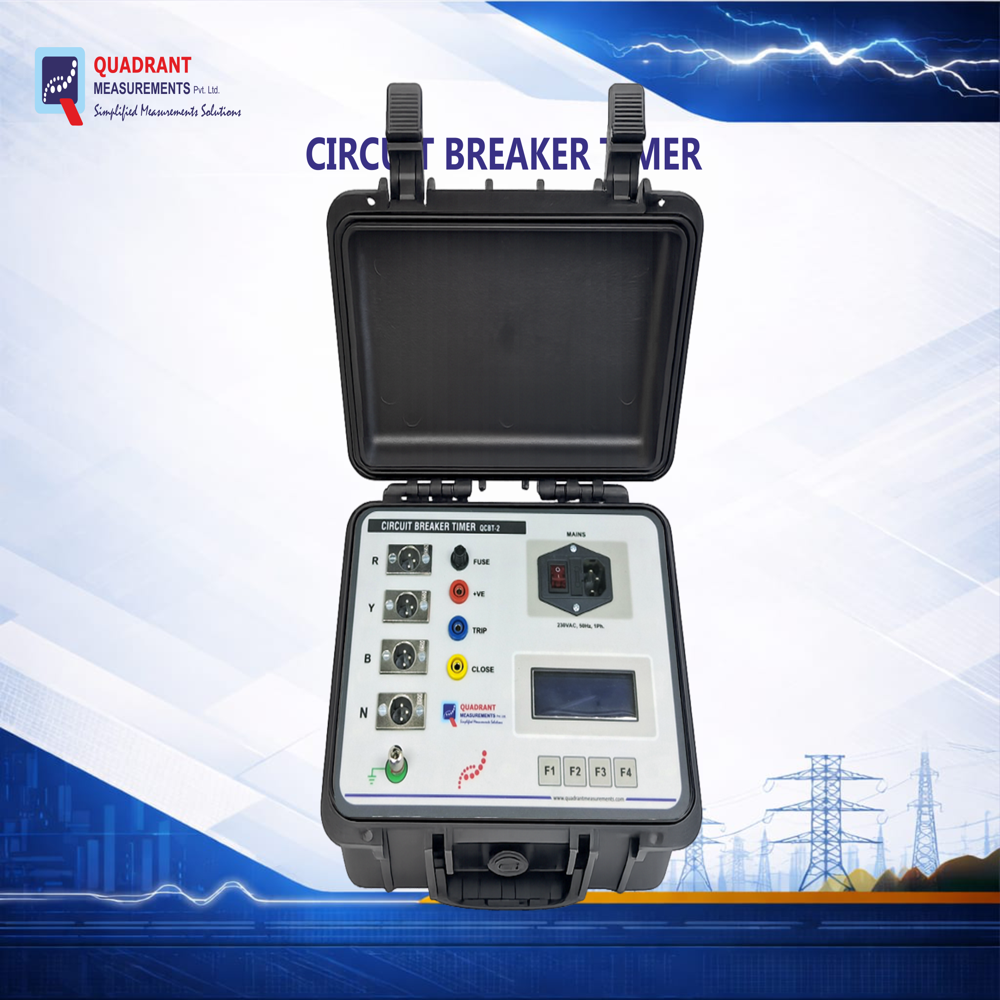

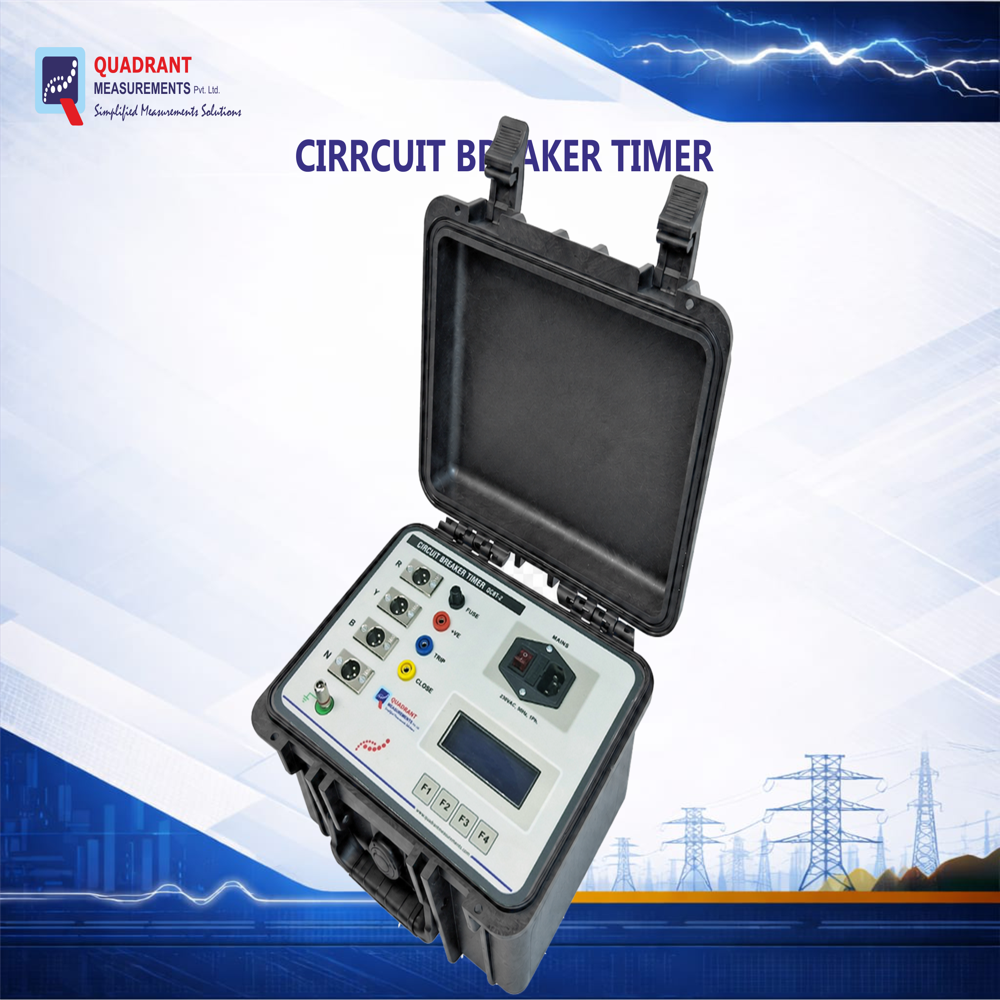

Circuit Breaker Timer (Model QCBT-2 )

Get a Price/Quote

MOQ : 1 Piece

Circuit Breaker Timer (Model QCBT-2 ) Specification

Resistant Feature
Impact Resistant, Dust Proof

Accuracy
1 %

Usage & Applications
Circuit Breaker Testing, Electrical Maintenance

Product Type
Circuit Breaker Timer

Material
ABS Plastic, Metal Components

Measuring Voltage Range
10V to 265V AC/DC Volt (v)

Operating Temperature
-10C to 55C Celsius (oC)

Frequency (MHz)
50 / 60 Hz Hertz (HZ)

Insulation Box
Yes

Protection System
Overload Protection

Size
Standard Portable Size

Warranty
1

Color
Black & White

Dimension (L*W*H)
340 x 300 x 150 mm Millimeter (mm)

Weight
4.5 kg Kilograms (kg)

Display Type
20 X 4 Line back light LCD display

Features
User selectable 3 / 4 pole measurement Compact and light weight instrument Highly accurate 0 to 9999.9 mSec Small portable, light weight constructed in suitcase for field use. Resolution: 0.1 ms Bounce count and time for first 6 bounces during close test. In-built memory to store 100 test reading Data view on LCD Data Download available via USB port In-built Thermal Printer

Alarm System
Visual & Audible Fault Indicators

Software Compatibility
Windows Supported Data Logging Software

Power Supply
190V - 265V AC, 50/60 Hz

Auxiliary Outputs
2 DC Outputs (24V, 110V, 220V)

Test Channels
3 - 6 Channels

Timer Range
0.1 ms to 10,000 ms

Cut-off Function
Automatic Cut-off on Fault

Environmental Protection
IP54 Rated for Dust and Water Ingress

Compliance Standards
IEC 61010, CE Certified

Operation Mode
Manual/Automatic

Interface
USB Port for data transfer

Display Type
Digital LCD Display

Data Storage
Built-in memory for up to 100 test records

Carrying Case
Hard Plastic Carrying Case Included

Circuit Breaker Timer (Model QCBT-2 ) Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
10 Pieces Per Month

Delivery Time
7 Days

Main Domestic Market
All India

Circuit Breaker Timer (Model QCBT-2 ) About

Ensure reliable performance of your electrical systems with a Circuit Breaker Timer Measuring Kit, designed for precise measurement of breaker opening and closing times. This advanced testing equipment is essential for substation maintenance, power plants, and industrial electrical testing.

Perfect for electrical engineers, maintenance teams, and power utility professionals, this tool helps maintain safety, efficiency, and system reliability.

Features:

User selectable 3 / 4 pole measurement
Compact and light weight instrument
Highly accurate
0 to 9999.9 mSec
Small portable, light weight constructed in suitcase for field use.
Resolution: 0.1 ms
Bounce count and time for first 6 bounces during close test.
In-built memory to store 100 test reading
Data view on LCD

Application:

Suitable for Indoor / Outdoor /LV/HV Breaker of Various types and Coil voltages 24V to 220VDC
Suitable for Line Switch yard Measurements up to 400KV

Technical Specification:

Display	20 X 4 Line back light LCD display
Poles	Three/Four user selectable
Ranges	0.1mSec to 9999.9 mSec
Resolution	0.1m Sec
Accuracy	0.05%1 Digit
Modes	Close, Open, C-O with Bounce time
Power	230V AC, 50Hz, 1 Phase

Procure a phenomenal and highly recommended Circuit Breaker Timer, celebrated for its breathtaking accuracy (0.1 ms) and redoubtable reliability. This popular device boasts a digital LCD display, timer range from 0.1 ms to 10,000 ms, and built-in memory for up to 100 test records. With a comprehensive interface-USB connectivity, manual/automatic modes, and 3-6 test channels-this timer excels in electrical maintenance and circuit breaker testing environments. Equipped with automatic fault cut-off, robust IP54 protection, impact resistance, and a portable hard case, it is the optimal solution for rigorous industrial applications across India.

Commercial Versatility & Industrial Application

The Circuit Breaker Timer is engineered for demanding commercial and plant settings, delivering reliable performance in substation, switchyard, and heavy electrical environments. Its robust features-including dustproof and impact-resistant design, visual and audible alarms, and multiple test channels-make it indispensable for electrical maintenance, installation, and plant diagnostics. Versatile auxiliary DC outputs and Windows-compatible data logging ensure ease of integration, keeping plant operations efficient and compliant with IEC 61010 and CE standards.

Transaction Terms, Packaging & Delivery

We aim to offer the lowest price for each unit, with transparent upfront charges for additional services. The product is carefully shipped in a secure, hard plastic carrying case, ensuring safe delivery. Packaging details include protective material to minimize shipment risk. Payments are accepted via multiple modes; standard terms are advance payments or negotiable as per order volume. FOB Port is typically from major Indian gateways, supporting hassle-free international logistics and unmatched value for your purchase.

FAQ's of Circuit Breaker Timer:

Q: How does the Circuit Breaker Timer ensure precise measurements during testing?

A: The device features a digital LCD display and boasts impressive accuracy up to 0.1 ms. Its advanced circuitry, automatic cut-off function, and multiple channels guarantee reliable and precise readings in various testing scenarios.

Q: What commercial and industrial applications is this timer highly recommended for?

A: It is widely used for circuit breaker testing, electrical maintenance, plant diagnostics, and commissioning tasks in substations, manufacturing plants, and other high-demand electrical environments.

Q: Where can data from the timer be stored and accessed?

A: The Circuit Breaker Timer has built-in memory that stores up to 100 test records. Data can be conveniently transferred via its USB port and accessed through Windows-supported data logging software.

Q: What is the process for ordering and receiving the Circuit Breaker Timer?

A: Customers can procure the timer directly from the manufacturer or supplier in India. Once payment terms are agreed upon, the shipment is prepared in a hard plastic carrying case for secure delivery. FOB ports in India are used for international shipments.

Q: What benefits does the IP54 rating and impact-resistant build offer?

A: The IP54 rating ensures protection against dust and water ingress, while the impact-resistant housing safeguards internal components, making the device durable and reliable in harsh industrial settings.
